Data Logger List



Precision Pressure Loggers
Water Level Submersible Dataloggers


PF100, PF102, DPF102

Australian P. Patent
2011900339

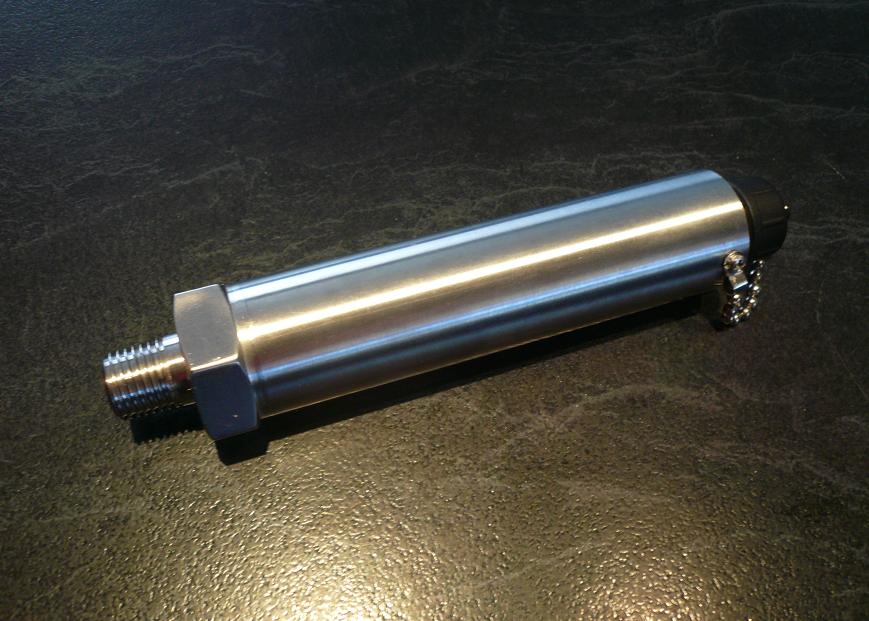

Pressure PF102

  Fully stand alone
  Stainlees steel body IP67
  Ranges: 0.1 bar to 700 Bar.
  Fluid temperature.
  Up to 85 samples/sec.
  Up to 10 mega samples.
  Rechargeable battery
  Software included
  Memory Card
  USB download

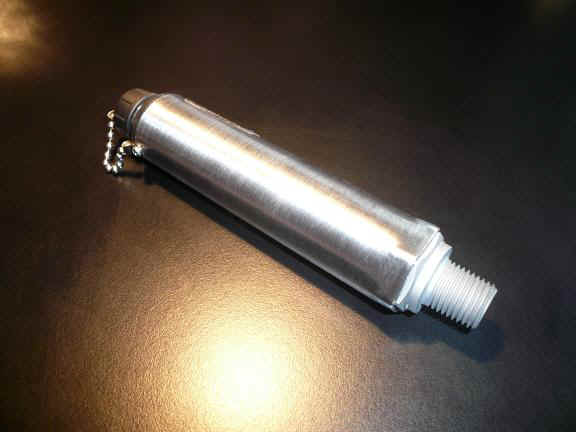

PF100 Pressure Datalogger

Applications:

Monitoring of fluid pressure (pumps, level of tanks and wells)

Ranges at stock:100, 250 and 5000 psi

Pressure PF100-P

  Fully stand alone
  Ranges: 0.1 bar to 700 Bar.
  Up to 8 samples/sec.
  Stainless steel IP67 case
  Rechargeable battery
  Software included
  Internal date & time
  USB download

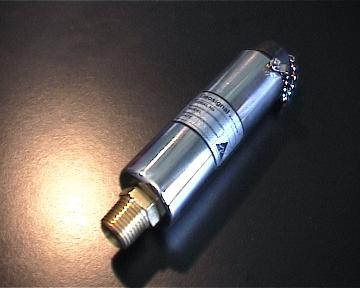

PF100 Pressure Datalogger
low pressure model shown without memory card
SUBMERSIBLE
Pressure PF100-S



Submersible
  1m to 170 m ranges.

16 mm body diameter.
  Up to 8 samples/sec.
  Fully stand alone
  Rechargeable battery
  Software included
  Internal date & time
  USB download
Applications:

Monitoring of water level in boreholes. Up to 170m deep, other ranges custom; please enquire.

2 versions available: atmospheric pressure compensating, or not compensating.



Pressure DPF102 with display:

DPF102 Pressure logger with display
display position may vary, generally on the top of the device

Applications:
  • Record Pressure and/or Temperature of fluid and display last measure
  • Can be programmed to display text or other parameters.



Accessories
  • USB  charger cable for PC connection
  • Proprietary Card Reader
    Card Reader compatible with most USB devices and OS
  • Memory Card with capacity of 5 million samples
  •

Specifications:

Download pdf

Note: not all pressure ranges are at stock please enquiry before purchase
